- Bosch GKS 235 Turbo (Standard)
- Makita hs7601 260 mm
- Einhell TE-CS 190/1
- DEWALT DWE5615
- According to customer request
Manual Horizontal / Vertical Locking System
The machine features a manual locking system to ensure safe operation in both horizontal and vertical positions. Thanks to the stops positioned every 1 meter, the machine can only be locked when it reaches the correct station. Once in the desired position, the system is mechanically fixed using a manual lever, and operation is not allowed without locking. This structure provides maximum stability during cutting, increasing safety and contributing to precise results.
Middle Shelf System
The middle shelf positioned along the cutting line allows the operator to work comfortably and controlledly on small pieces without bending down. Offering ergonomic use, this structure provides great convenience, especially in precise and serial cutting operations. In addition, the movable support parts on the shelf prevent small cut pieces from falling behind the machine, contributing to the uninterrupted continuation of the workflow.

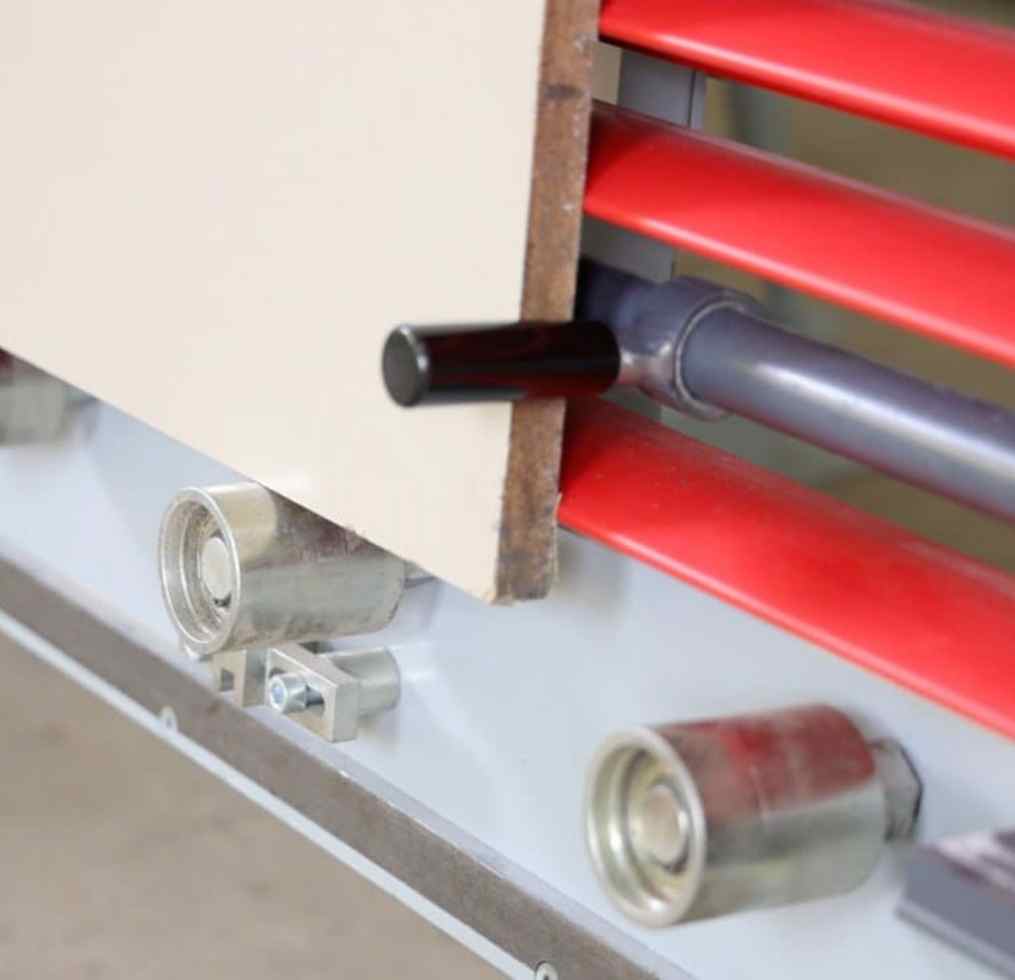

Manual Clamping System
The bottom holding system, which ensures the material is positioned securely and steadily during cutting, provides a strong grip with its manual mechanism. The piece is clamped from below in a controlled manner along the cutting line, eliminating the risk of vibration and slipping. In this way, cleaner, more precise, and error-free cuts are achieved while occupational safety and surface quality are maximized.
2500 m³ Dust Extraction Unit
The 2500 m³ capacity dust extraction unit, offered with the machine depending on the requirement, effectively removes the sawdust and dust generated during cutting. With its strong suction performance, it keeps the workspace clean, enhances machine efficiency, and brings operator comfort to a high level. It provides a project-specific solution with its optional structure.
| MODEL | 1325 | 1632 |
| CUTTING AREA | 1300 mm x 2500 mm | 1600 mm x 3200 mm |
| CUTTING DEPTH AT 45° | 50 mm | 50 mm |
| CUTTING DEPTH AT 90° | 70 mm | 70 mm |
| IDLE SPEED (MAX) | 5300 rpm | 5300 rpm |
| POWER | 2050 W | 2050 W |
| SAW BLADE DIAMETER | 235 mm | 235 mm |
| SAW BLADE HOLDER DIAMETER | 30 mm | 30 mm |
| SUCTION CONNECTION DIAMETER | 35 mm | 35 mm |
| MACHINE SIZE (LxWxH) mm | 3500 mm x 1350 mm x 2000 mm | 3500 mm x 1350 mm x 2000 mm |
| WEIGHT (APPROX.) | 275 kg | 350 kg |
